Snorkel boom lift

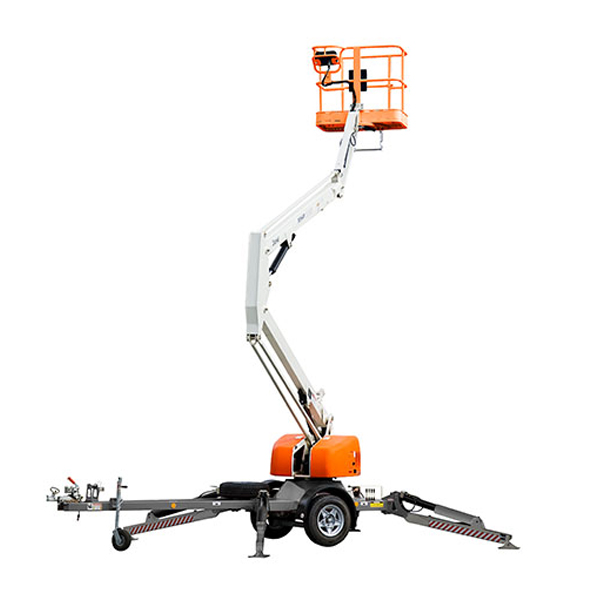

Built for the Australian market, the Snorkel MHP13/35 is a heavy duty trailer mounted boom lift, with a robust steel platform capable of lifting two people to a working height of 12.6m.

USES
Heavy duty trailer mounted articulated boom lift, ideal for a wide range of construction, building and maintenance applications. Robust steel platform with two man capacity.

SPECIFICATIONS
Engine typeEngine modelEngine speed (full load)Fuel
4-stroke, 2 cylinder, air cooledGX 610 QDF3,200rpmRegular unleaded gasoline
Travelling widthWorking widthHeight stowedOverall length
1.58m3.7m2.05m5.99m
WeightPlatform capacityPlatform sizeControl systems
1360kg227kg1.25m x 0.78mFully proportional hydraulic controls
FEATURES
  • High strength steel boom and base construction
  • Proportional speed control
  • Heavy duty tow coupling
  • Heavy duty jockey wheel
  • Hydraulic disc brakes
  • Reliable gasoline engine with optional bi-energy power
  • Versatile jib boom (+70° to -70°)
  • Articulating boom sections allow for up to and over reach manoeuvres
  • 600V AC rated wire platform
  • A two man steel platform with a safe load rated at 250kgs standard
  • Outrigger / boom safety interlocks
  • Lockable operated hydraulic outriggers
  • Independently operated hydraulic outriggers
  • Independently operated outriggers
  • Platform rotator
  • Lifting lugs
  • Automatic stabilisers
TRANSPORT
  • Delivery available across Melbourne
  • Can be towed via car (max. 80km/h)
